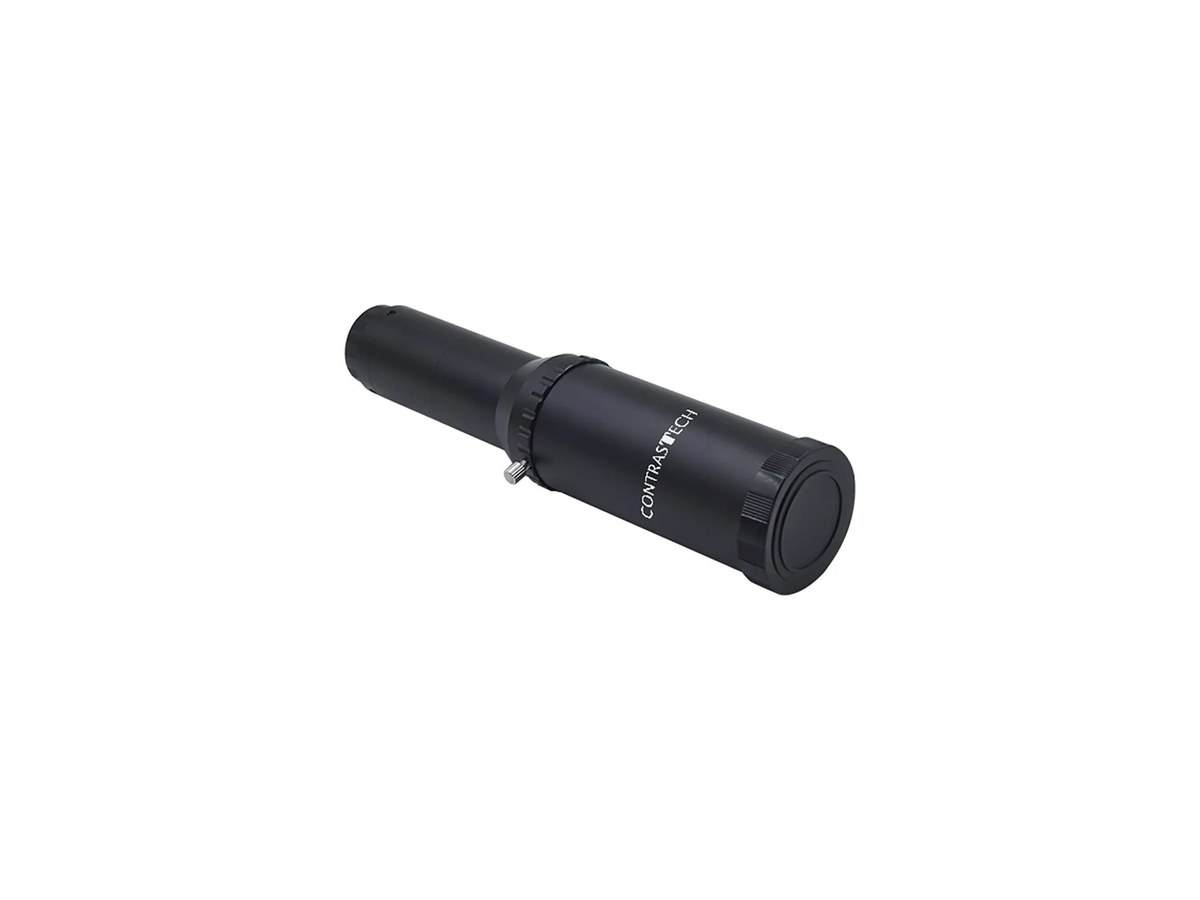

Telecentric Lenses
Telecentric lenses maintain constant magnification across the depth of field, making them ideal for precision measurement and machine vision applications.
Specifications: Sensor formats from 2/3″ to 59 mm | C / M58 / M72 mounts | Distortion down to 0.01% | WD from 40 mm to 1,000 mm
- Standard bi-telecentric designs for metrology
- Double-sided telecentric for highest precision
- Custom WD and sensor format on request
Standard Telecentric
For general measurement and inspection tasks. Available in a range of magnifications and sensor formats.
Large Format Telecentric
Up to 59 mm sensor coverage for large-area inspection and high-resolution measurement.
FA / Machine Vision Lenses
Fixed-focus machine vision lenses for factory automation, inspection, and robotics.
Specifications: 5–25 MP resolution | 1/1.8″–1.2″ sensors | Focal lengths 4–75 mm | Low-distortion designs | C-mount
- High-resolution designs for large sensors
- Compact form factors for space-constrained systems
- Vibration-resistant locking mechanisms
Liquid Lenses
Electrically-tunable lenses with millisecond response times. No moving parts, no wear, ideal for high-speed focusing and depth-of-field extension.
Specifications: Response time <10 ms | Tuneable focal length range | Compatible with standard C-mount housings | FA-type and telecentric-type
- Fast autofocus for barcode reading and inspection
- Extended DOF without mechanical motion
- Long lifetime due to no moving parts
360° & Bore Inspection
Pericentric lenses capture the full outer or inner wall of cylindrical objects in a single image.
Specifications: 360° outer wall imaging | Bore inspection for inner diameters | Single-shot capture | Compatible with standard sensors
Measurement Solutions
Bi-telecentric lenses paired with collimated LED illumination for shadow-free, high-contrast measurement.
Specifications: Illumination uniformity >95% | Adjustable working distance | Telecentricity maintained across full FOV
Specialty Lenses
Optics designed for harsh or unusual environments.
Available types: Shock-resistant (rail/transport) | UV 170–480 nm | Radiation-resistant | Custom coatings and materials
Chromatic Confocal
Non-contact displacement and thickness measurement with sub-micron accuracy.
Specifications: Linear error ±0.03 µm | Transparent multi-layer thickness | Sub-micron Z resolution | No calibration needed for different materials
Laser Displacement
Triangulation-based sensors for distance, thickness, and profile measurement.
Specifications: Reference distance 8–2,250 mm | Linear accuracy up to ±0.02% F.S. | High-speed sampling for production lines
Need a custom specification?
We can source products to your exact requirements or support custom development from prototype to production.
